Iontosorb SALICYL

Chelating sorbent

It containins salicylic acid bound via azo-group in side chains of modified bead-form cellulose:

Chemical Structure (2036 bytes)

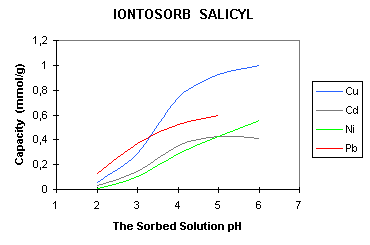

Similar to Iontosorb OXIN, Iontosorb SALICYL also exhibits a high selectivity and beside chelating groups it contains only neutral hydroxy groups. The concentration of  active groups is 0.2 mmol/g min. The sorbent capacity for chosen metals depending on pH is given in these figures:

Capacity of Sorbent (3644 bytes) Capacity of Sorbent (3807 bytes) Capacity of Sorbent (3433 bytes)

Applications of Iontosorb SALICYL

COMPLEXATION OF LABILE ALUMINIUM SPECIES BY CHELATING RESINS IONTOSORB - A NEW METHOD FOR Al ENVIRONMENTAL RISK ASSESSMENT

P. Matus, J. Kubova

Journal of Inorganic Biochemistry, 99 (2005) 1769-1778

Recoveries (%) for Al exchange by Iontosorb SALICYL at various pH values
pHTime [min]
012510
2.5 0 46.8 60.1 70.4 83.3
3.0 0 79.2 91.1 96.6 97.3
4.0 0 91.8 96.4 97.7 97.4
5.0 0 89.9 94.2 96.9 96.7
6.0 0 93.6 98.1 99.7 99.9
Recoveries (%) for various Al complexes exchange by Iontosorb SALICYL
Ligand (Ligand / Al ratio)Time [min]
012510
Nitrate 0 91.8 96.4 97.7 97.4
Sulphate (1:1) 0 84.4 91.8 96.9 97.2
Fluoride (2:1) 0 75.4 79.5 81.4 82.1
Tartaric acid (3:1) 0 44.2 49.8 54.0 56.2
Citric acid (3:1) 0 45.2 52.4 61.1 67.1
Oxalic acid (3:1) 0 33.4 37.4 39.1 41.4
NTA (3:1) 0 15.1 16.5 18.9 17.7
EDTA (3:1) 0 13.8 14.8 14.9 15.6
Fulvic acid (3:1) 0 9.8 10.9 11.6 12.5
oxin02 Determinet contents of reactive Alr in water samples after 1 min complexation on Iontosorb OXIN and Iontosorb SALICYL (FA - fulvic acid)

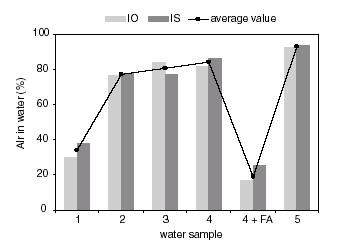

oxin03 Determinet contents of reactive Alr in water samples after 5 min complexation on Iontosorb OXIN and Iontosorb SALICYL (FA - fulvic acid)
Recoveries (%) Al exchange by Iontosorb SALICYL (interfernce study)
Ion (mol l-1)Time [min]
015103060
K2SO4
Sulphate (10-5) 0 94.4 99.2 99.5 99.3 99.8
Sulphate (10-4) 0 98.3 98.6 98.9 99.7 not measured
Sulphate (10-3) 0 93.6 98.6 98.9 99.6 not measured
Sulphate (10-2) 0 62.3 91.5 96.5 98.4 99.9
Sulphate (10-1) 0 33.7 56.3 67.3>/td> 78.3 79.8
(NH4)2SO4
Sulphate (10-3) 0 92.4 99.3 99.6 99.2 99.8
Sulphate (10-2) 0 66.4 92.3 94.0 96.8 99.0
Sulphate (10-1) 0 24.0 47.3 59.9 70.3 70.8
KCl
Sulphate (10-3) 0 94.3 98.4 99.0 99.6 99.5
Sulphate (10-2) 0 87.6 98.4 99.1 99.5 99.6
Sulphate (10-1) 0 56.8 89.0 94.0 95.8 99.5
FeCl3
Sulphate (10-5) 0 93.2 94.1 96.0 99.4 not measured
Sulphate (10-4) 0 86.1 90.5 94.7 95.1 95.8
Sulphate (10-3) 0 75.3 81.2 85.2 89.9 90.5

Technical Parameters

Porozity TypeParticle Size [μm]

SALICYL 100

30 - 50
50 - 80
80 - 100
100 - 250
250 - 500
